High Sorting Rate Eddy Current Sorter can separate non-ferrous metals such as silver, copper, and aluminum from solid waste mixtures.

Eddy Current Separator Machine can separate non-ferrous metals such as silver, copper, and aluminum from solid waste mixtures.

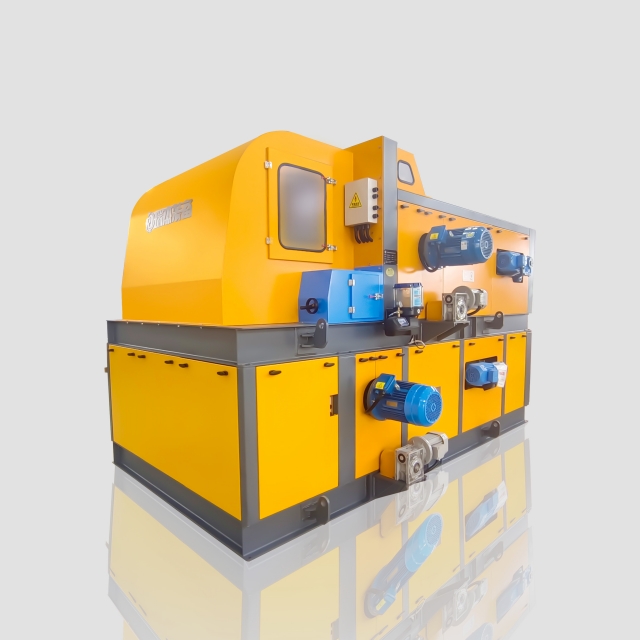

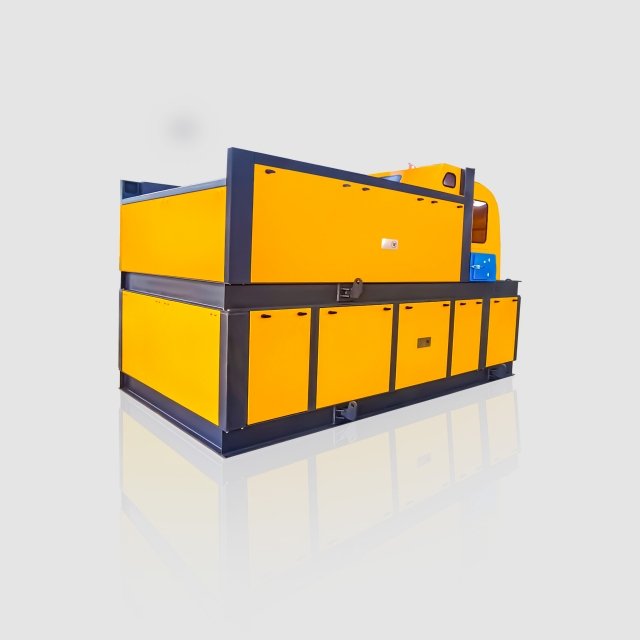

Ruijie dual-layer eddy current sorter, high sorting accuracy aluminum recycling machine

High Sorting Rate Eddy Current Sorter with Double Layer

Ruijie High Sorting Rate Double-layer Eddy Current Sorter is on demand for recovery of non-ferrous metals particles such as copper, aluminum, plastic and rubber from solid waste mixtures, delivering high accuracy and capacity.

1. Main components are made of the best quality Chinese 304 stainless steel, achieving the effect of corrosion and oxidation resistance, prolonging service life.

2. Rotor magnet is made of N52 NdFeB, with high magnetic force, high temperature resistance, not easy to demagnetize.

3.The belt is made of interlayer PU material, with high toughness, wear-resistance, not easy to corrode.

4.The brush roll adopts a built 1.5 KW well-known brand reducer, low speed ratio, high torque.

Get A Free Quote

High Sorting Rate Eddy Current Sorter Description

RUIJIE High Sorting Rate Eddy Current Sorter is designed to effectively separates solid particles ≥2mm, delivering strong performance for various non-ferrous metals separation.

This Double Layer Eddy Current Sorter is an metal sorting equipment, ideal for incineration base ash (IBA) waste sorting plants, scrap metal recycling facilities, scrap car shredding operations, and other recyclable material processing scenarios.

It is also an aluminium recycling equipment that suitable for complex metal sorting occasions such as slag separation, recycled aluminum raw material sorting, scrap steel treatment, automobile dismantling, and glass recycling.

Note

If the feed material contains iron, pre-remove iron impurities first (using an iron remover or strong magnetic separator before the eddy current sorter) to avoid conveyor belt damage.

Working Principle of the Double Layer Eddy Current Sorter

The Concentric eddy current separator generates a high-frequency alternating strong magnetic field via its high-magnetic-strength rod surface. When materials pass through this magnetic sorting area from the hopper, eddy currents are induced inside non-ferrous metal blocks (such as copper and aluminum), enabling the effective separation of non-ferrous metals from mixed waste streams.(Note that oversized materials must be crushed by a crusher prior to sorting.)

Belt Width 2000mm Eddy Current Sorter Specification

Model	*Dimensions (LWH) (mm)*	Effective Belt Width (mm）	Power（kw）	Weight（kg）	Feeder Discharge Time(s)	Processing Capacity (t/h)
RJ200AL-2	384332412529	2000	23.2	8965	20~23	7.5-18

Double Layer Eddy Current Separator Applications

This high capacity double layer Eddy Current Sorter enables automatically separates non-ferrous metals (e.g., copper, aluminum) from non-metallic materials, with adjustable forward/reverse operation tailored to material conditions—enabling high-efficiency metal recovery.

1.Waste Glass Recycling Industry

Removal of aluminum bottle caps and aluminum or copper alloy parts from broken glass materials.

2.Scrap Crushing Plant

Sorting non-ferrous metals from scrap crushing tailings.

3.Automobile Dismantling and Crushing Plant

Separation of non-ferrous metals from crushed materials.

4.Waste Household Appliances Crushing, Sorting and Recycling Industry

The eddy current separator can recycle and separate copper, aluminum and other non-ferrous metals from crushed waste refrigerators and household garbage such as TVs, TV set-top boxes, radios, etc.

5.Construction Waste

Scrap Metal Separator Machine is able to separate the aluminum, copper pipe, aluminum pipe of waste windows from the crushed construction waste.

6.Aluminum can Beverage Bottle Recycling

Eddy separator can sort aluminum can waste beverage bottles in household waste.

7.Other Industries

Other occasions for the separation of non-ferrous metal fragments and non-metallic substances.

ASR IBA Waste Glass Recycling Household Appliance Waste

Get Free Quote of High Sorting Rate Eddy Current Sorter with Double Layer

Boost your productivity and choose our advanced RUIJIE double-layer eddy current sorter!Whether you’re dealing with scrap metal recycling or separating complex materials, our equipment delivers superior performance and precise separation.

Fill out the inquiry form today to get the best eddy current separator price and enjoy a customized service that will help you stand out in your industry.

We are committed to providing quality after-sales support to ensure you get the maximum return on your investment. Don’t miss out and contact us today!

Get A Free Quote Now

Products Categories

Magnetic Separation Machine

Eddy Current Separator

Wet Drum Magnetic Separators

Up-suction Magnetic Drum Separators

Electromagnetic Overband Separator

High Intensity Permanent Magnetic Separator

Permanent Magnet Drum

Gravity Sorting Machine

Jig Concentrator

Crushing Machine

Iron Hammer Crushing Machine

Hammer Stone Crusher

Copper Hammer Crushing Machine

Screening Machine

Vibrating Dewatering Screens

Trommel Screen Machine

Conveying Machine

Bucket Wheel Sand Washer

Screw Sand Washing Machine

Screw Conveyor

Reciprocating Plate Feeder

Gold Mining Equipment

Get A Free Quote

High Sorting Rate Eddy Current Sorting Machine for Plastic Aluminum Irrigation Sorting Video

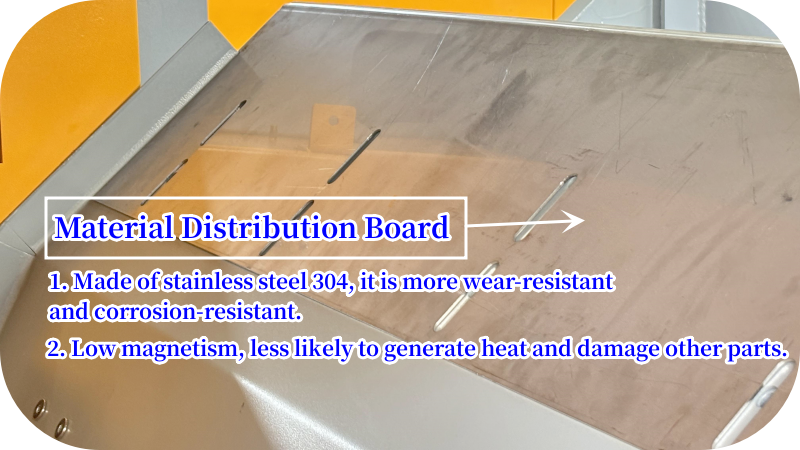

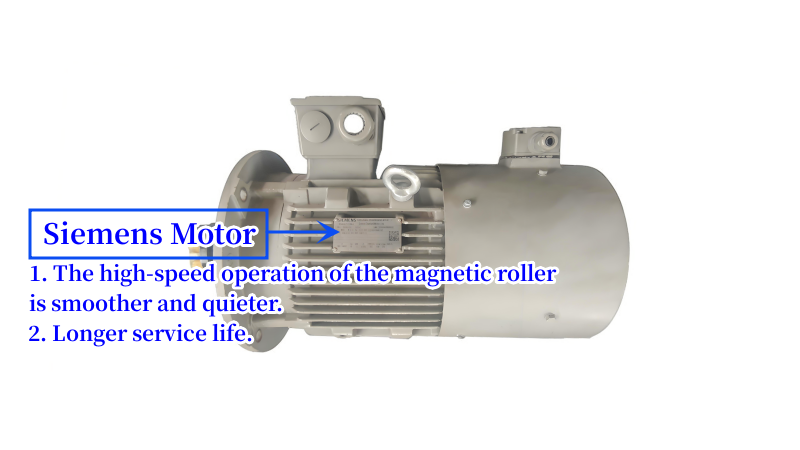

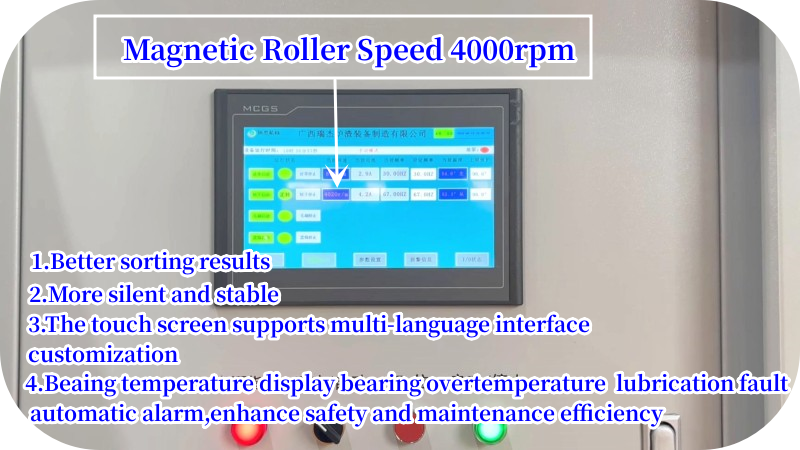

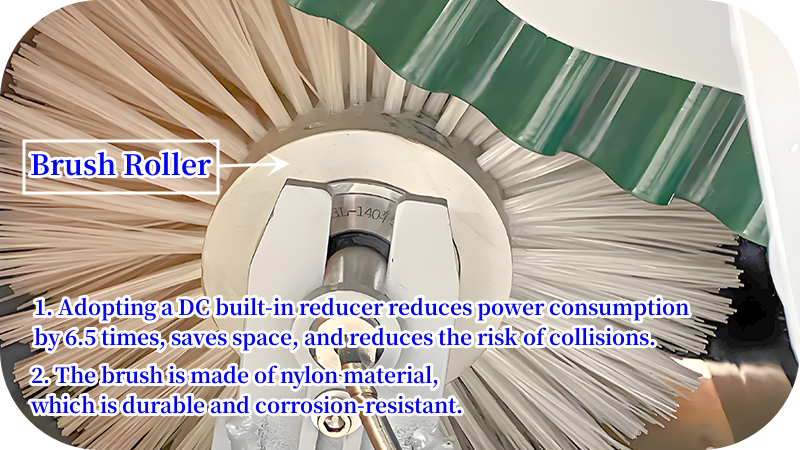

Double Layer Eddy Current Sorter Detail Display

More Information About Ruijie Reliable Customizable Eddy Double Layer Eddy Current Sorter

Why to Select the Double Layer Eddy Current Sorter

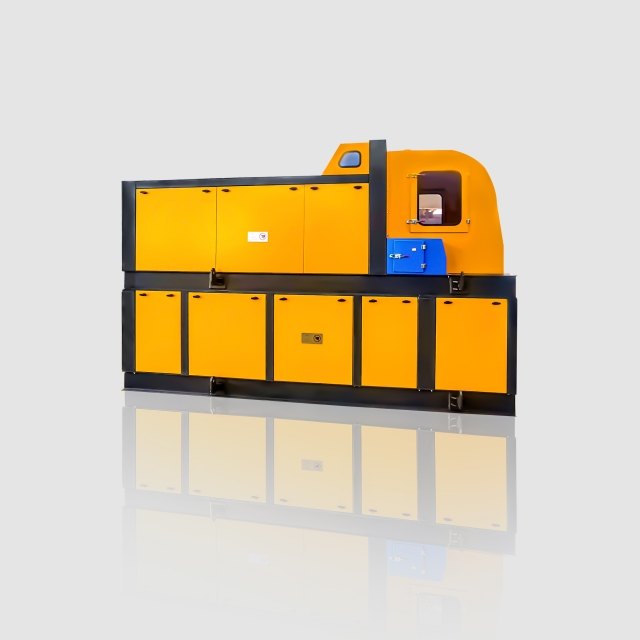

Ruijie double layer eddy sorter machine RJ200AL-R2 is a magnetic separation equipment, with highest 4200gs rotor surface magnetic field. It can handle material with a size range of 2 to 80 mm, processing capacity 7.5~ 18t per hour.

High Sorting Efficiency Double-Layer Eddy Current Sorter

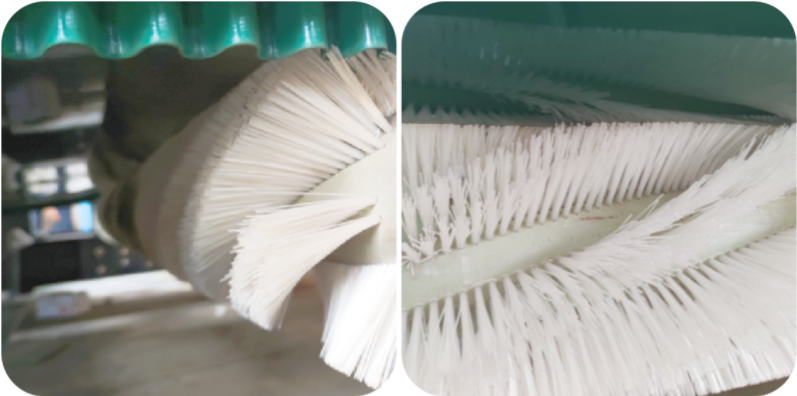

High sorting efficiency double layer eddy current sorter has important application value in the field of incineration bottom ash (IBA) wet separation and recovery. To improve sorting efficiency, we installed a sturdy, dense, acid-alkali-resistant, and highly durable nylon brushroll under the conveyor belt of each non-ferrous metals separator to enhance the sorting efficiency. These are specifically designed to effectively remove wet materials that are stuck to the surface of the belt.

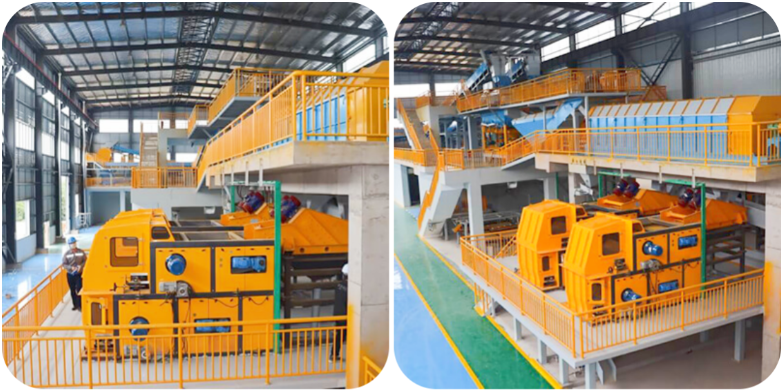

Double-Layer Eddy Current Separator Saves Space

Double-Layer Eddy Current Separator can save space since it is only 6-7 square meters, but enjoy the functions of two devices in the same space location. The large capacity non-ferrous metals sorting machine will carry out the sorting materials twice, and the sorting purity and work efficiency are higher than that of the single-layer machine.

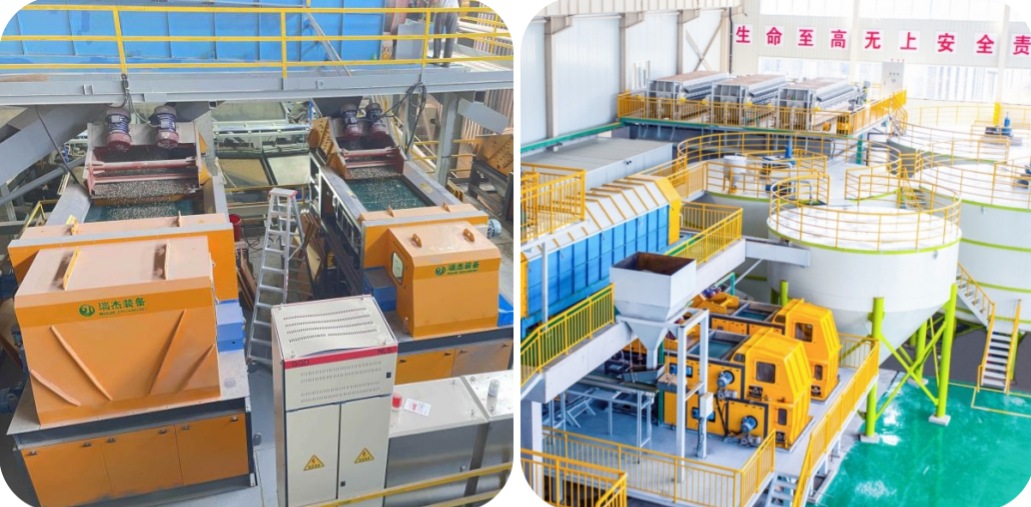

Double-layer Eddy Current Separator in the Solid Waste Separation Project Application Site

With its compact, highly standardized modular system, you only need 6 to 7 square meters of floor space to achieve a high degree of automated material sorting. The system simplifies maintenance as the material is designed to be shipped from the same outlet, making the entire operation seamless.

In the solid waste separation project, Ruijie eddy sorter with adjustable magnetic field can effectively separate the aluminum from the mixture. As China eddy current sorter manufacturer and exporters, Ruijie design eddy current sorter of different specifications to meet diverse customer needs. Good eddy current separator price, high quality metal separating machine, optimize your recycling production line now!

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment；Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
