Eddy Current Sorting Machine can sort copper from various granular materials, from aluminum cans to slag circuit board broken materials.

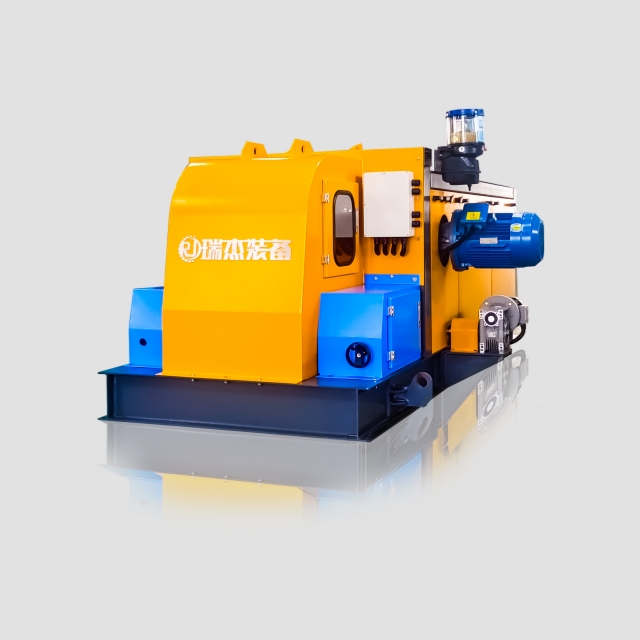

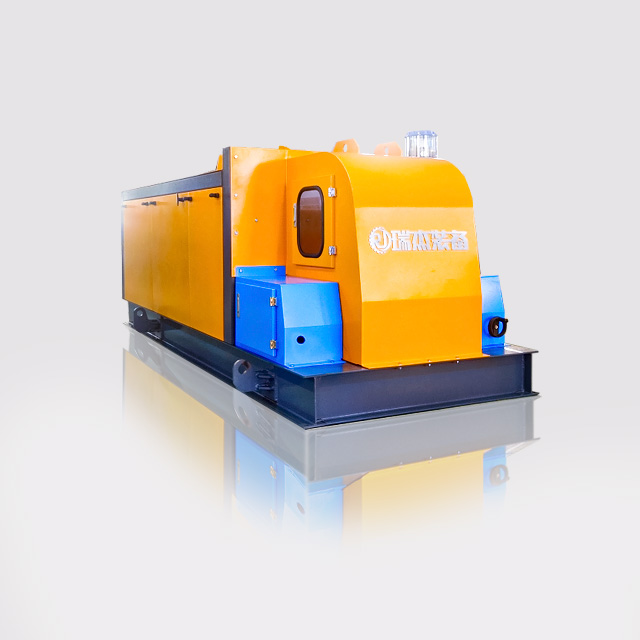

Eddy Current Sorting Machine For Separation Copper RJ065AL-R

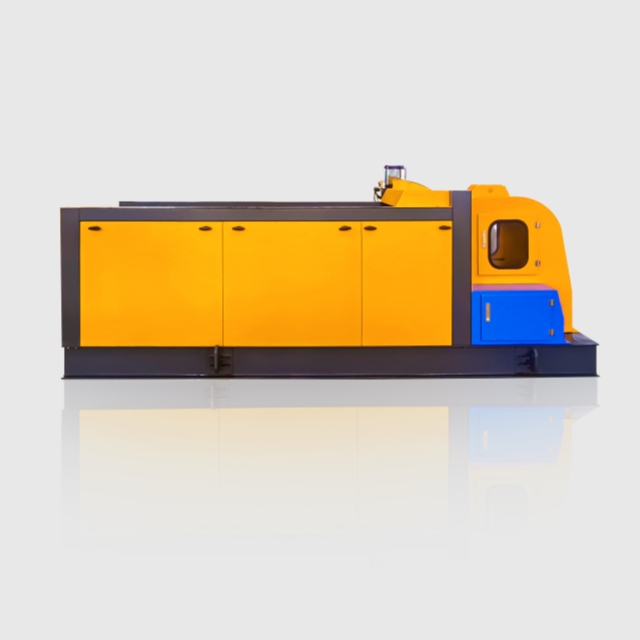

Eddy Current Sorting Equipment RJ065AL-R

Eddy Current Sorting Machine For Separation Copper

Ruijie Eddy Current Sorting Machine efficiently separates copper, aluminum, and other non-ferrous metals from granular materials, from scrap aluminum cans to crushed waste circuit boards, ensuring high-purity sorting for recycling operations.

1.Well-designed Feeding Belt

The skirted feeding belt, paired with dual fine-dust sealing strips, prevents material spillage, while our rigorous quality control ensures consistent performance.

2.Real-Time Intelligent Control

The integrated smart control system monitors and adjusts sorting parameters dynamically, boosting operational efficiency and separation accuracy.

3.Optimized Material Distribution

The 4-way adjustable dispensing device enables precise angle calibration to match material characteristics, significantly increasing sorting recovery rates.

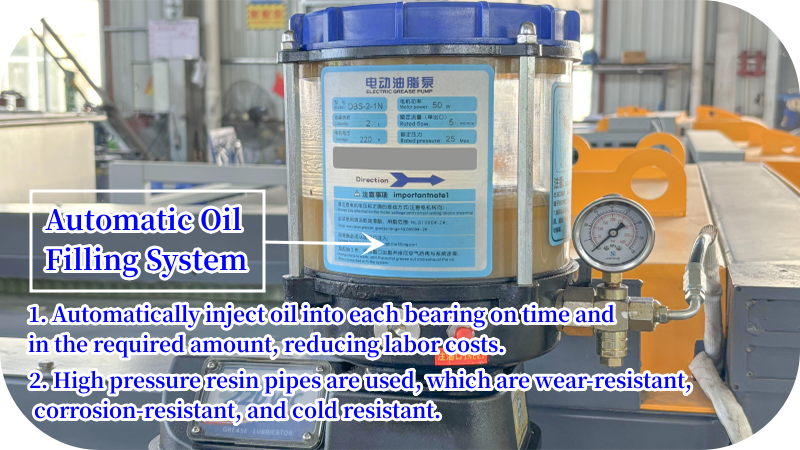

4. Automatic Lubrication & Maintenance

The fully automatic oil injection system lubricates all bearings on a timed, demand-based schedule, reducing wear and minimizing equipment downtime.

Get A Free Quote

Aluminium Can Recycling Machine Description

Ruijie eddy current sorting machine is also an Aluminium Can Recycling Machine, has the advantages of

excellent sorting effect
strong adaptability
reliable mechanical structure
light structural weight
strong repulsion (adjustable)
high sorting efficiency
large processing capacity

It leverages advanced eddy current separation technology to efficiently recover non-ferrous metals, such as copper and aluminum, from mixed materials including electronic waste.

This eddy current sorting machinery is widely applied in e-waste recycling production lines and environmental protection projects, particularly in the non-ferrous metal recycling industry.

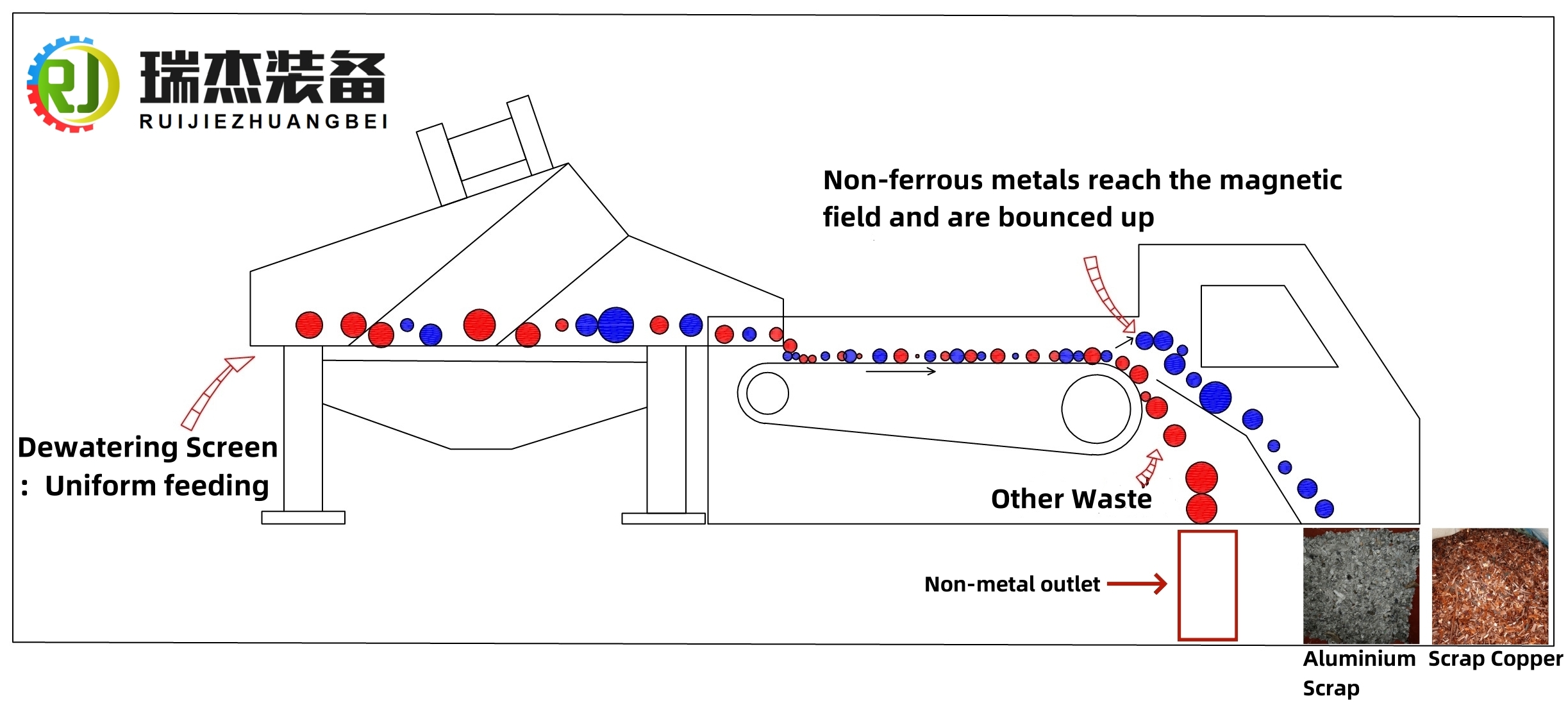

Single Layer Eddy Current Sorter Working Principle

When fragments of electronic waste containing non-magnetic conductive metals (such as copper and aluminum) pass through an alternating magnetic field at a certain speed, eddy currents are induced inside these metals.
Since the material flow maintains relative motion with the magnetic field, a thrust force is exerted on the metal sheets and blocks where eddy currents are generated.
Utilizing this principle, specific non-ferrous metals can be separated from the mixed material flow.

3D Working Principle Video:Click here

Single Layer Eddy Current Sorting Machine Structure Diagram

The eddy current separator is mainly composed of magnetic rollers, head rollers, sorting devices, brush rollers, drum supports and other parts.

High Efficiency Eddy Current Magnetic Separator Parameter

Model	*Dimensions (LWH) (mm)*	Effective Belt Width (mm）	Power（kw）	Weight（kg）	Feeder Discharge Time(s)	Processing Capacity (t/h)
RJ065AL-R	331117781297	650	10.2	2575	20~23	2-6.5

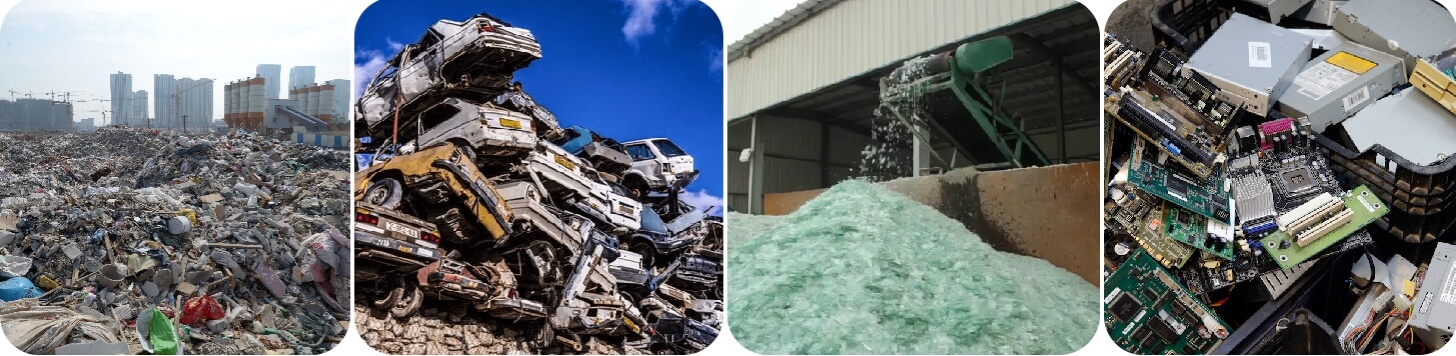

Cost-effective Eddy Current Sorting Machine Applications

Eddy Current Sorting Machine has a wide range of applications, which involves various fields including waste electrical appliance recycling, electronic waste processing, scrap automobile crushing and sorting, etc.

1.Scrap Car Disassembly and Recycling: The Metal sorting machine can sort aluminum, copper, and other non-ferrous metals from the crushed scrap car fragments.

2.Industrial Slag Recycling: After incineration, waste is converted into slag. The eddy current magnetic separator can effectively separating non-ferrous metals such as aluminum and copper from the slag.

3.Recycling of Used Household Appliances: The eddy current sorting machine is capable of separating non-ferrous metals such as aluminum and copper from crushed waste household appliances.

4.Construction Waste Sorting and Recycling：The eddy current separator separates aluminum, copper and non-ferrous metals from construction waste by generating eddy current.

5.Sorting of Domestic Waste：The domestic waste undergoes trommel screen screening, hammer crusher crushing, and pretreatment after iron removal via a permanent magnet drum. It is then process by an eddy current non-ferrous metal separator to separate aluminum and copper.

Construction Waste Automotive Shredder Residue Waste Glass Recycling Industry Electronic Trash

Get Free Quote of Eddy Current Sorting Machine For Separation Copper

Want to improve sorting efficiency? Our RUIJIE Eddy Current Sorting Machine is the ideal choice for you! Simply fill out the inquiry form and get a tailor-made solution and a free quote today to take your productivity to the next level. Contact us and start a new era of efficient production!

Get A Free Quote Now

Products Categories

Magnetic Separation Machine

Eddy Current Separator

Wet Drum Magnetic Separators

Up-suction Magnetic Drum Separators

Electromagnetic Overband Separator

High Intensity Permanent Magnetic Separator

Permanent Magnet Drum

Gravity Sorting Machine

Jig Concentrator

Crushing Machine

Iron Hammer Crushing Machine

Hammer Stone Crusher

Copper Hammer Crushing Machine

Screening Machine

Vibrating Dewatering Screens

Trommel Screen Machine

Conveying Machine

Bucket Wheel Sand Washer

Screw Sand Washing Machine

Screw Conveyor

Reciprocating Plate Feeder

Gold Mining Equipment

Get A Free Quote

Eddy Current Sorting Machine For Incineration Bottom Ash Aluminum Sorting Video

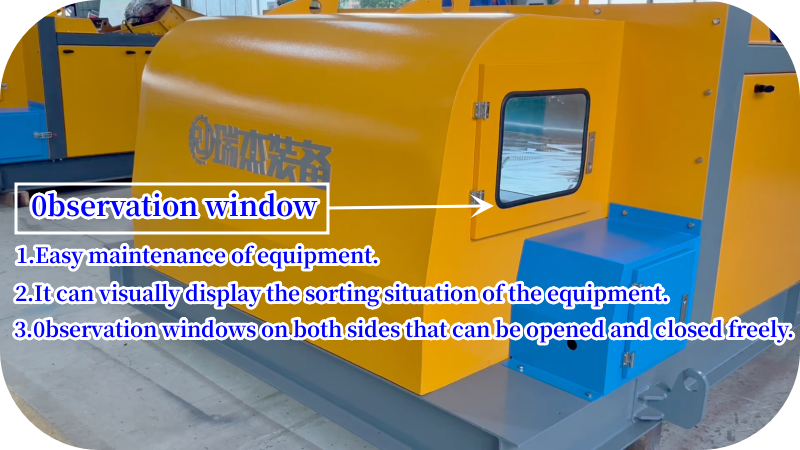

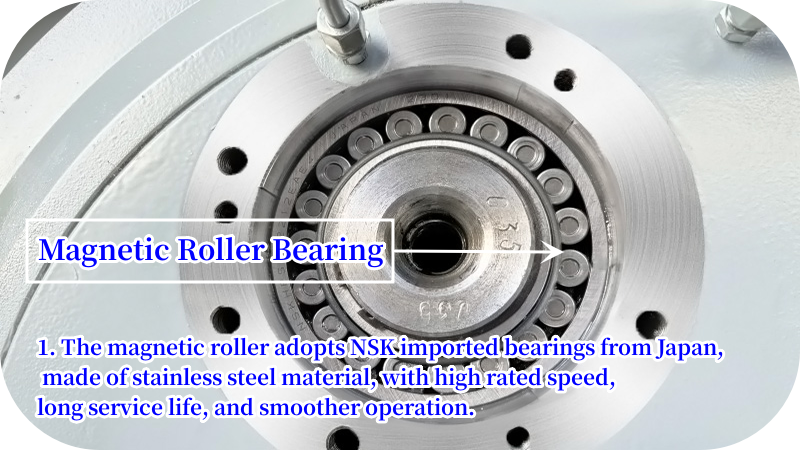

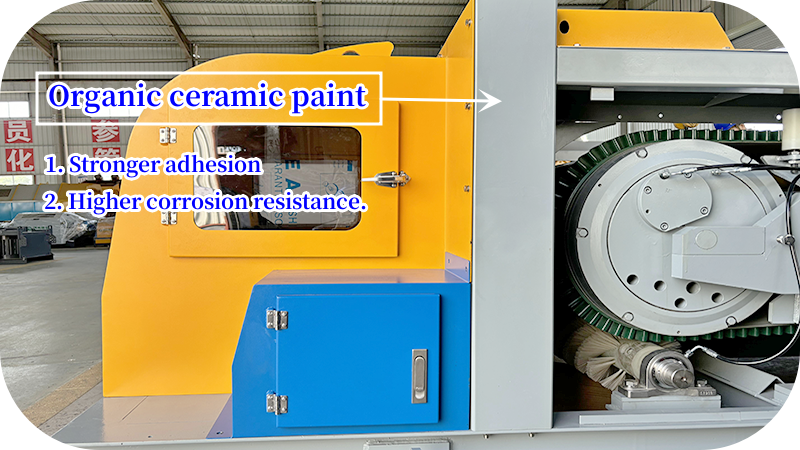

RUIJIE Eddy Current Separator Detail Display

Related Expansion of High Efficiency Eddy Current Sorting Machine

Single-layer Eddy Current Sorting Machine Application Site

The Eddy Current Separator is Used to Recycle the Aluminum Scrap in the Incineration Bottom Ash

The center of the magnetic pole adopts an eccentric design, and the metal eddy current throwing force is stronger. Eccentric eddy current separators are ideal for separating small pieces of non-ferrous metals. It can effectively separating aluminum from other materials.

Click here →to watch how does the eccentric eddy current separator recycle aluminium scrap from mixed materials.

Incineration Bottom Ash (IBA) Burnt aluminium

Here’s a look at the scrap aluminum we separate from solid waste (←click here) a highly sought-after non-ferrous metal raw material for smelters.

We provide a complete set of production line scrap metal recycling equipment to handle your various non-ferrous metal and magnetic metal separation, solve your various recycling problems, meet your needs, and create maximum profits.

In addition, RUIJIE Manufacturer have a variety of types and models for users to choose from, which are suitable for different processing capabilities of aluminum scrap recycling, which can better improve the recycling efficiency and produce purer and higher value non-ferrous metals.

RUIJIE Lab Offers Free Material Testing

1.Our laboratory is equipped with single-layer eddy current separator and double-layer eddy current sorting equipment, electromagnetic separator and other magnetic separation machines, which can be used for sample testing for domestic and foreign customers.

2.After the test, we will provide the material test video and report to the customer.

Choose a Dedicated Non Ferrous Metal Separator for Your Specific Application

In addition to standard sizes, we can also provide one-stop services such as specialized eddy current sorting machines and recycling sorting line design solutions for specific material characteristics in different industries, depending on your metal recycling industry.

1.The eddy current magnetic separator is designed to remove impurities from recycled aluminum raw materials.

2.The eddy current non ferrous separator is specially designed to sort the whole aluminum can.

3.In the field of waste glass recycling industry, RUIJIE eddy current non ferrous metal separator

focuses on removing aluminum rings and aluminum caps from waste glass.

4.Laboratory-grade small or large eddy current separator machine for specialized applications.

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment；Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
