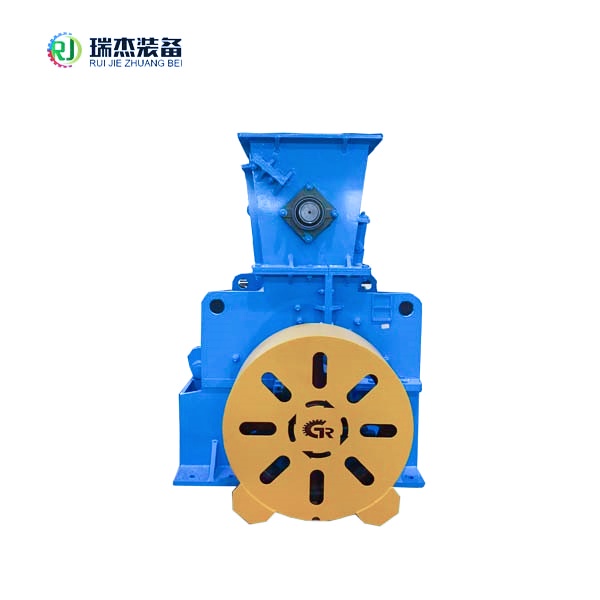

New Industrial Energy-saving Soil Crusher Machine Manufacturer From China

Ruijie high efficiency soil crusher is a new industrial crusher machine designed for crushing various kind of soil into fine particles, making it ideal for building materials, agriculture use.

  1. Multifunctional, adapt to processing Dry & Wet Materials.
  2. Fine discharge, no need for sieving
  3. Equipped with alloyed steel head, more wear-resistant.
  4. Convenient unboxing, easier to replace accessories.
  5. Driven by power source, energy-saving and stable running.
  6. Large processing capacity, finish crushing large amount of soil in a short time.

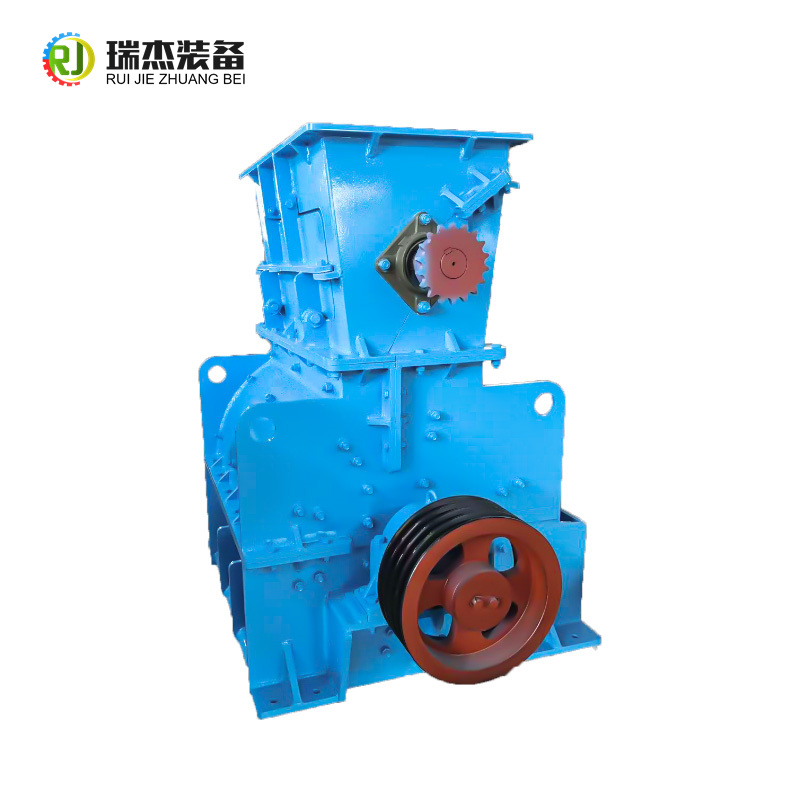

Ruijie Energy-saving Soil Crusher Machine Description

The new soil crushing machine provided by Ruijie  is an advanced crushing equipment designed for soil crushing.

It features high speed(with a rotor speed of 960–1200 revolutions per minutes.), a durable design, and energy efficiency. It is  widely used for crushing all kinds of wet or dry soil, such as stone coal, cinder, slag, construction waste, sludge, clay,organic fertilizer, peat soil, gypsum board, and is applicable to industries including gardens, bricks factories, mines.

After crushing, fine soil material can be obtained for reuse. Thus, waste materials are not turly waste but valuable resource. This significantly improves resource utilization rate, reduces environmental pollution, and maximizes economic benefit.

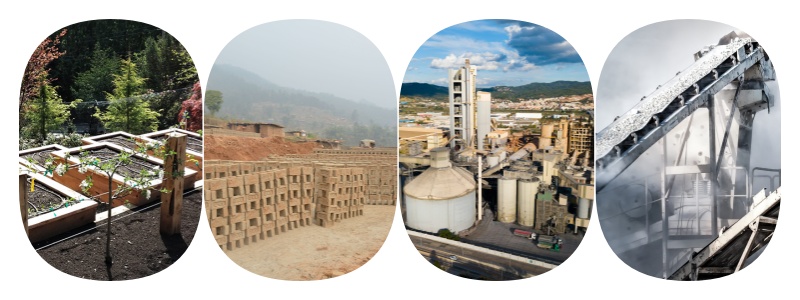

Application of high effective soil crushing machine with large process capacity

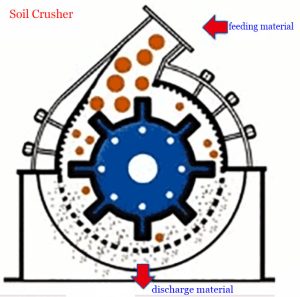

Working principle

When the materials are fed into the chamber of soil crusher machine, crushing motor rotate by the driven of power source, with the high-speed rotating impact and shear of crushing blades, those materials can be crushed into fine particles.

Working principle of High-Performance Soil Crushing Machine

Ruijie Energy-saving Soil Crusher Machine Technical Sheet

Model Body Width (mm) Feed Inlet(mm) Processing Capacity(t/h) Power (kw) Dimensions (L*W*H)(mm) Weight(kg)
FT-1000 1000 488*968 15-20 55 1870*1090*1560 2618

Ruijie Energy-saving Soil Crusher Machine Application

Ruijie high-performance soil crusher machine is suitable for gardens, brick factories, chemical plants, mines, lime plants and other industries.

Garden industries:Compost residues, humus, peat soil, leftover organic fertilizer produced in the processing of garden Planting Maintenance, can be crushed by the high-performance soil crusher machine for reuse.

Mines industries: All kinds of large stone, stone coal, cinder, slag residues can be crushing into small particles for recovery.

Ruijie energy-saving soil crusher machine for various of soil crushing

Get Free Quote of Ruijie New Energy-saving Soil Crusher Machine

The high effective energy-saving soil crusher machine, is a new product Ruijie designed for crushing soil, clay, organic fertilizer, peat soil, gypsum board and other dry and wet materials, as well as powdered crystalline blocks, widely application, easy to operate, customizable, best price. Just get it !





Products Categories
Get A Free Quote
Contact Form Demo (#3)
New Industrial Energy-saving Soil Crusher Machine

Related Expansion of High Crushing Rate Muti-functional Soil Crusher Machine

About Soil Crusher Machine Maintenance: What Should We Pay Attention To?

Keeping proper maintenance for the soil crusher machine or any other equipment is very important to prolong the machine service life and ensure the operation stability.

How To Maintain The Soil Crushing Machine?

Here shows some tips that should be paid attention to:

  • Cleaning the equipment, inspecting and tightening screws, maintaining proper lubrication, and adjusting mechanical components.
  • Proper selection and application of lubricants. Usually there are grease and lubricating oil for option, but we suggest grease because it has excellent sealing properties to prevent dust from entering bearings.
  • Professional operator, operator responsible for the crushing equipment should be proficient in operating, maintaining, inspecting, and troubleshooting and related knowledge and operation.

Key Notes:

  1. Bearings:
    Lubricate bearing housings with high-temperature resistant composite grease once per shift.
  2. Bearing Maintenance:
    After every month of continuous operation, remove old grease from bearings and replace it with fresh grease to ensure longevity.
  3. Safety Checks:
    Inspect and tighten all screws on the machine body weekly using a wrench for safety.

Strictly Follow the mentioned aspects, the soil crushing equipment could stay in a good running condition, enhance efficiency and reduce repair cost by 50%. work well, and reduce the repair cost,

If you would like a customizable crushing machine, or a complete resource recycle solution, just contact us for more professional support.

GET MORE INFORMATION OF SLAG SORTING EQUIPMENT SOLUTION

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment;Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
