What Is Eddy Current Sorting?
Eddy current sorting is a non-contact separation technology that leverages material conductivity differences. When conductive materials pass through a rotating magnetic field, induced eddy currents generate a repulsive force, deflecting non-ferrous metals (e.g., copper, aluminum) from non-conductive waste for efficient, high-purity separation in recycling and mineral processing.

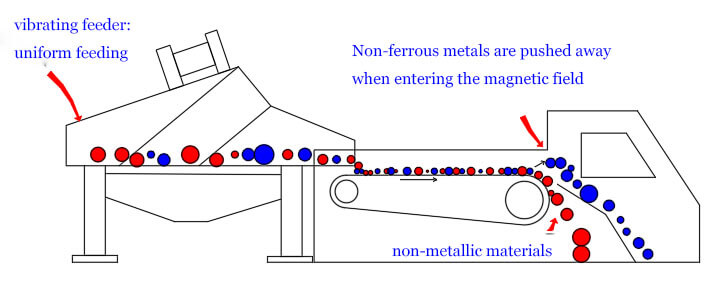

Working Principle
Eddy current sorting achieves separation through a straightforward, physics-driven process:
- A high-speed rotating magnetic roller generates a strong, high-frequency alternating magnetic field on its surface.
- Mixed materials are uniformly fed onto the conveyor belt via a vibrating feeder, ensuring a consistent flow for precise separation.
- When conductive non-ferrous metals (such as copper, aluminum, brass, and zinc) pass through the magnetic field, eddy currents are induced within the metals.
- These eddy currents create a secondary magnetic field that opposes the original field, generating a repulsive force that propels the metals forward and away from the conveyor belt.
- Non-conductive materials (plastic, glass, rubber, stone, etc.) are unaffected by the magnetic field and follow the normal trajectory of the belt.
- This physical deflection creates a clear separation between metals and non-metallics, enabling high-purity recovery with minimal manual intervention.
The Main Distinguishing Criterion
The main criterion is the ratio of conductivity and density of the material, and the material with a high ratio is easier to separate than the material with a low ratio.
The effectiveness of eddy current sorting depends on a key material property: the ratio of electrical conductivity to density.
- Materials with a high conductivity-to-density ratio (e.g., aluminum, copper) are highly responsive to the magnetic field, making them easy to separate with high efficiency.
- Materials with a low ratio have weaker eddy current induction, requiring adjusted machine parameters for optimal separation.
- Non-conductive materials (plastic, glass) have a near-zero ratio, so they remain unaffected and follow the conveyor path.
This criterion allows the technology to be tailored to specific material streams, ensuring maximum recovery rates for different applications.
Key Advantages of Eddy Current Sorting
Compared with traditional manual sorting, mechanical screening, or gravity separation, eddy current sorting delivers transformative benefits:
- High Automation & Efficiency: Fully contact-free, continuous operation eliminates manual labor and reduces processing time.
- High Recovery Purity: Achieves up to 95%+ purity for separated non-ferrous metals, even from complex mixed waste streams.
- Eco-Friendly Operation: No chemical additives, no emissions, and no material contamination, fully aligning with global sustainability goals.
- Low Operating Cost: Reduces labor expenses, improves resource utilization, and delivers long-term economic returns for enterprises.
- Wide Adaptability: Customizable magnetic field strength, roller speed, and feed rates to suit diverse material sizes and processing scenarios.
Common Applications
Eddy current sorting is widely deployed across multiple high-growth industries:
- Municipal Solid Waste & Recycling: Recovers copper, aluminum, and other non-ferrous metals from household waste and shredded refuse.
- Scrap Metal Processing: Separates non-ferrous metals from shredded automobile scrap, industrial metal waste, and demolition debris.
- E-Waste Recycling: Extracts valuable metals from electronic waste, supporting the circular economy for IT and telecom equipment.
- Mineral Processing: Sorts non-ferrous ores from gangue to enhance mineral grade and recovery rates in mining operations.
- Plastic & Glass Recycling: Removes residual metal contaminants to improve the quality of recycled materials for manufacturing.
Conclusion
Traditional solid waste recycling and mineral processing methods have long been limited by low efficiency, high labor costs, and poor recovery purity. The emergence of eddy current sorting technology solves these pain points completely.
By leveraging electromagnetic principles to achieve precise, automated separation of non-ferrous metals, eddy current separators significantly improve enterprise production efficiency, reduce labor costs, and boost economic benefits. As global demand for resource recycling and sustainable production continues to rise, eddy current sorting has become an indispensable, future-proof solution for modern industrial operations.
