RUIJIE Three Chambers Jig Concentrator
RUIJIE Three Chambers Jig Concentrator is a professional mineral gravity separation device, designed to separate valuable minerals from gangue using water flow and gravitational forces.
We will now introduce our latest three-chamber Jig beneficiation machine in detail.
High-capacity Three Chambers Jig Machine
This robust, mature equipment is independently developed by RUIJIE, with proven field applications in incineration bottom ash (IBA) treatment and mineral beneficiation operations worldwide.
Core Structure & Components of Jig Machine
The jig machine is built with a modular, easy-to-maintain design:
- Jigging Chamber: The core separation zone where water pulsation creates stratification of minerals by density.
- Screen & Screen Fixing Plate: Holds the separation screen, which retains heavy minerals while allowing lighter gangue to pass through.
- Diaphragm & Cone Bucket: Driven by the cam reducer to generate vertical pulsating water flow, the key to gravity separation.
- Spring System: Provides stable vibration and shock absorption, ensuring consistent separation performance.
- Cam Reducer & Motor: Delivers controlled, adjustable jigging motion to match different mineral types and particle sizes.
- Frame & Seamless Pipe: Sturdy structural base for heavy-duty operation, with seamless pipes ensuring reliable water and drive transmission.
Key Maintenance Advantages

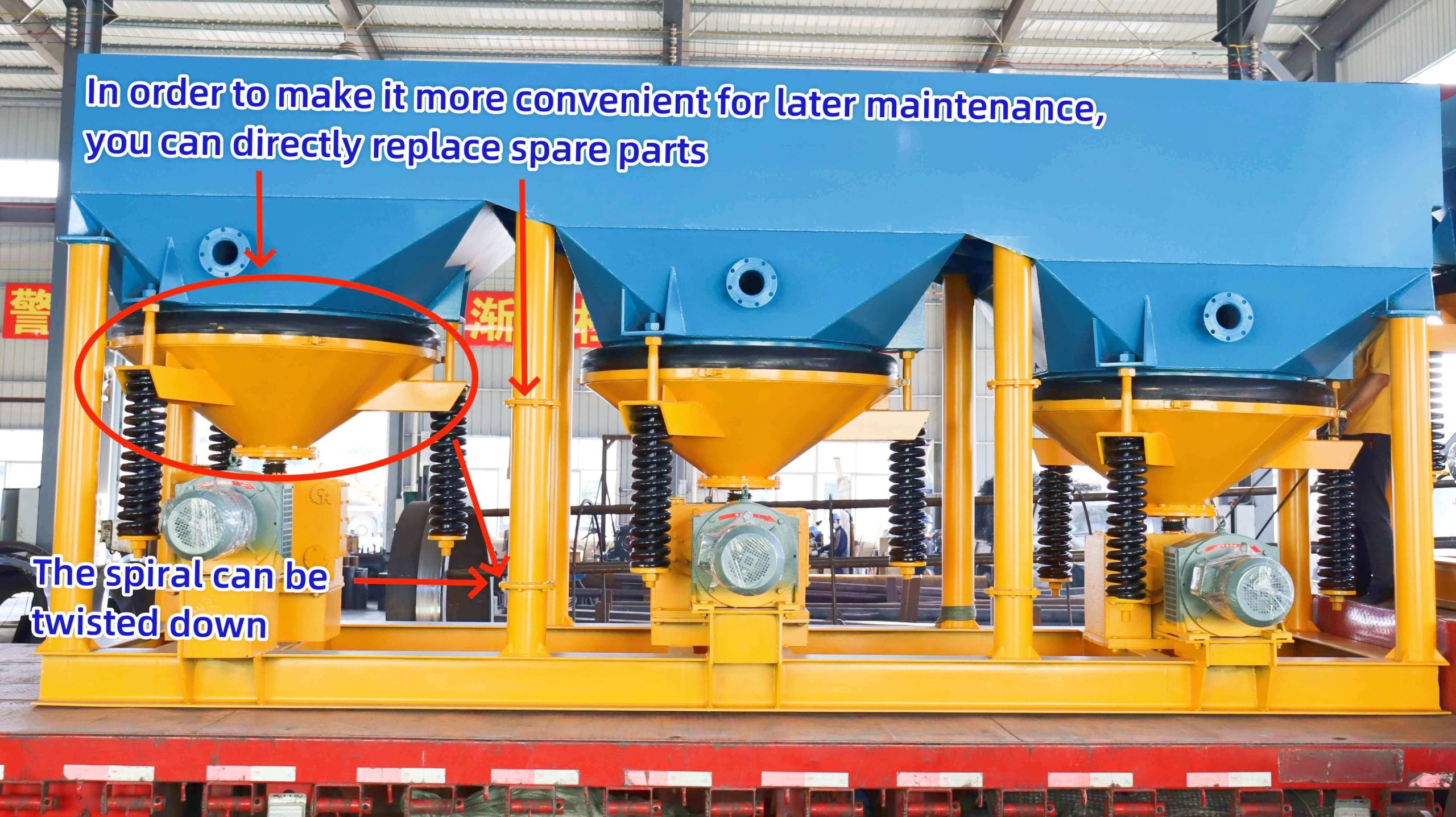

Modular Spare Parts Replacement: The chamber components are designed for quick disassembly, allowing direct replacement of wearing parts (e.g., diaphragms, screens) without full machine teardown, drastically reducing downtime.
Simplified Adjustment Mechanism: The spring suspension system can be easily twisted down for access to the drive and jigging mechanism, enabling fast inspection and maintenance.
Core Applications
Mining Industry: Efficiently separates heavy minerals (e.g., tin, tungsten, gold, iron ore) from gangue via gravity separation, delivering high recovery rates.
Waste-to-Energy (WtE): Recovers valuable metals and inert fractions from incineration bottom ash, supporting resource circularity and reducing landfill volume.
RUIJIE Three Chambers Jig Concentrator Features
1. High Efficiency & Compact Design
The three-chamber jig delivers 3x the processing capacity of a conventional single-chamber machine, while occupying a smaller footprint—maximizing output per unit area and optimizing plant layout.
2. Superior Separation Performance
Its jagged pulsation creates a faster upward water flow than downward flow, accelerating the settling of heavy ore and improving sorting precision for higher-grade concentrates.
3. Easy Operation & Low Maintenance
Simplified installation, transport, and operation; consumes less water than traditional jigs; modular design reduces downtime for maintenance and part replacement.
4. Wide Application Range
Accommodates a broad range of beneficiation scenarios and particle sizes, making it suitable for diverse mineral processing and waste recovery applications.
Conclusion
Our jig separator machines serve customers across multiple industries, with complete turnkey solutions including full equipment lines, process flows, and auxiliary systems.
For optimal results, we recommend mine owners and project operators:
- Evaluate jig specifications based on material requirements, recovery targets, and investment costs during the early planning stage.
- Consult qualified mineral processing equipment manufacturers for custom concentrator design, avoiding costly, uninformed decisions.
