Suspended Magnetic Separator 3D Working Principle Video:
Electromagnetic over-band magnetic separator is mainly composed of driving roller, bearing seat, magnetic system group, driven roller, track, electric box and other parts.
During operation, iron materials on the conveyor belt are adsorbed to the track surface when passing the bottom of the electromagnetic system.
As the separator’s belt rotates, the adsorbed iron is carried to a non-magnetic area, where it falls into the hopper automatically.
This enables continuous and automatic iron removal.
Electromagnetic Overband Separator-Iron Block Test
What Should We Pay Attention To When Using The Suspended Magnetic Separator ？
The Electromagnetic Over-Band Separator operates on the principle of electromagnetic induction and generates a strong magnetic field. When using it, the following precautions must be noted:
1. Do not place the iron remover in an ultra-high temperature or high-humidity environment, as this may cause damage.
2. Keep it away from magnetic objects (e.g., nails, magnets, coins) to avoid interference.
3. When the suspended magnetic separator is in operation, do not touch its working components with your hands to prevent electric shock.
4. After use, unplug the suspended magnetic separator’s power cord and store it in a dry, well-ventilated area.

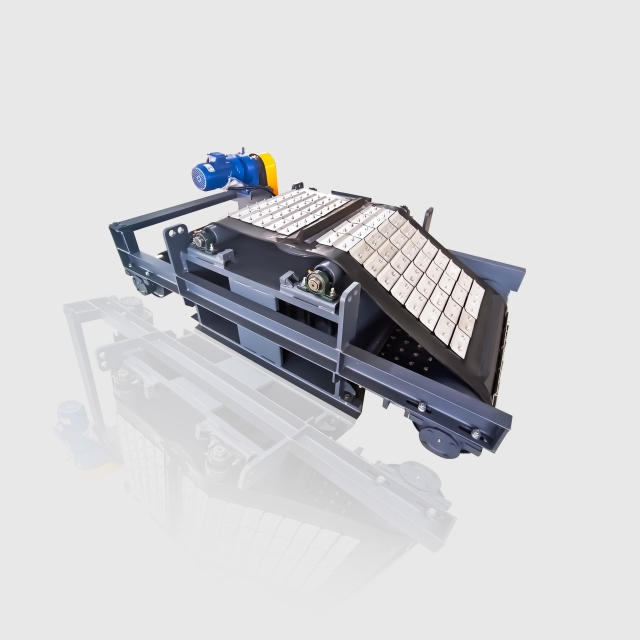

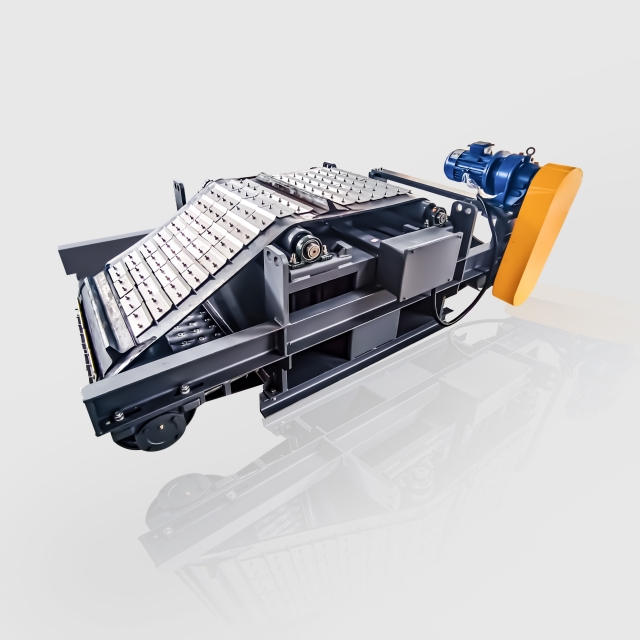

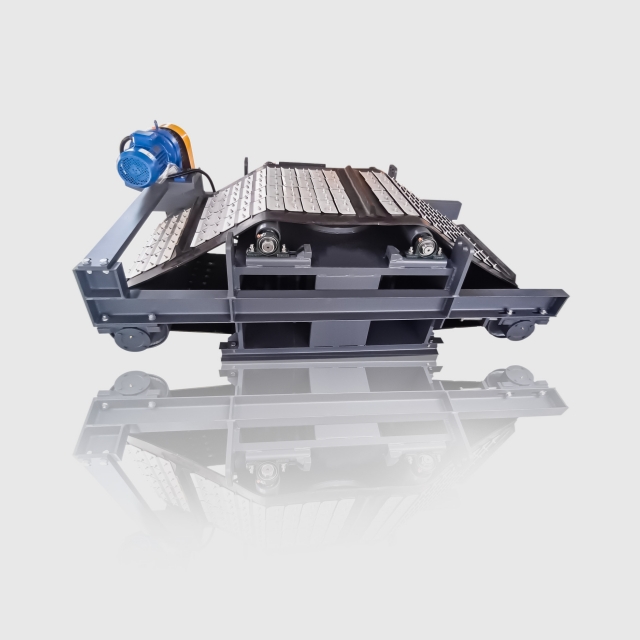

Ruijie Suspended Magnetic Separator RCDD08 features an effective track width of 704mm, enabling large-volume raw material processing. We can also customize according to customer’s requirements. Get the Suspended Magnetic Separator for your project now！
