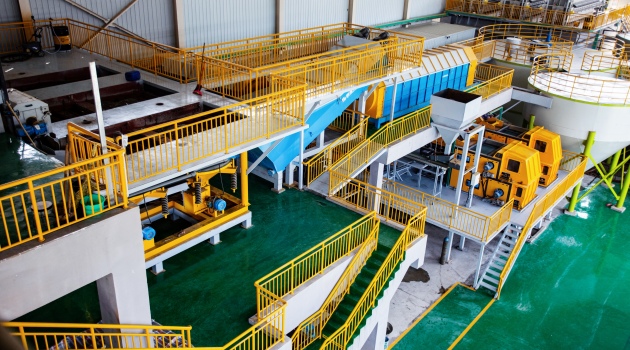

HeBei Xingtang IBA Sorting Plant 600T/D
Ruijie sorting machines for IBA wet sorting solution
The production line of Ruijie Slag Equipment for Slag Treatment
Ruijie sorting machines for IBA wet sorting solution
Ruijie sorting equipment for IBA wet sorting solution
HeBei Xingtang IBA Sorting Plant 600T/D
Ruijie sorting machines for IBA wet sorting solution
The production line of Ruijie Slag Equipment for Slag Treatment

High Efficiency Series of Resource Recycle Sorting Machines for Wet Sorting Production Line

Ruijie six series of core slag equipment are designed for separating and recycling the valuable resources from slag treatment, the solid waste of automotive shredder residue,ect.

  • Magnetic separation Equipment: Effectively separate the metal, non-ferrous metal from mixture materials by magnet, low demagnetization, high sorting purity.
  • Gravity sorting Equipment: Excellent beneficiation effect of non-ferrous metal, fined-grained materials by specific gravity deference, watering saving, large processing capacity.
  • Screening equipment: Classify and separate materials by particle sizes, customizable aperture size meets to different discharge need.
  • Crushing equipment: Crushing large materials evenly into required sizes particle, high crushing rate, wear-resistant, low energy consumption.
  • Conveying equipment: Large conveying capacity of various material, less loss, long service life.
  • Central control equipment: Real-time monitoring and control all production line stages of the equipment operation, automatically, safely.

Ruijie High Efficiency Sorting Machine Description

Ruijie resource recycle sorting machine can effectively screen and recover iron, aluminum, copper, gold, tun and other metals and non ferrous metal, crush large stone into fine particle, wash and clean to finished sand. A completely wet sorting line can achieve recovery rate up to 98%.

The detailed composition of the production line- six series of core equipment as below

 Magnetic separation Equipment series

Eddy current separator, to separate aluminum from the mixture, usually install in the end of the production line,

Electromagnetic over-band separator: Extract the large iron metals from the screening trommel, usually installed at the starting point of the production line.

Permanent magnetic separator: Screen the iron and other heavy metal powder for recovery.

Up-section magnetic separator&wet-drum magnetic separator: absorb iron materials from mixed materials.

best sale magnetic separation equipment from Chinese Manufacturer



Gravity sorting Equipment Series

It is a jig concentrator well equipped for grading and classify copper, silver, tin, tungsten, tantalum, etc, less water consumption.

Gravity separation machine jig separator for metal recycle



Crushing machine Series

Stone hammer crusher for stone crushing, iron hammer crusher for iron crushing, copper hammer crusher for copper crushing, fine crushing and rough grinding function. Corrosion-resistant, anti-leakage treatment.

Hot sale China industrial crushing machine manufacturer



Screening Equipment Series

Trommel screen for screen large & small lumps, solid waste, magnetic materials, float and sand materials; vibrating dewatering screen for dehydration of sand.



Conveying Equipment Series:

Reciprocating plate feeder drop the materials evenly and continuously to the hopper or belt conveyor.

Screw conveyor is used to convey the raw materials to each stage of the line.

Spiral sand washing machine is used for sand washing, and then transfer the sand to the dewatering screen.



Conveying equipment for IBA sorting production line



Central Control Equipment Series

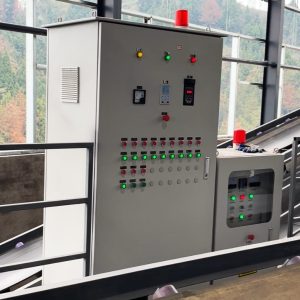

Cabinets with control system, it is connected to the computers, monitor the whole production line,  control the machines operation, if any issue, you could make a emergency stop.

Ruijie control system for IBA wet sorting project

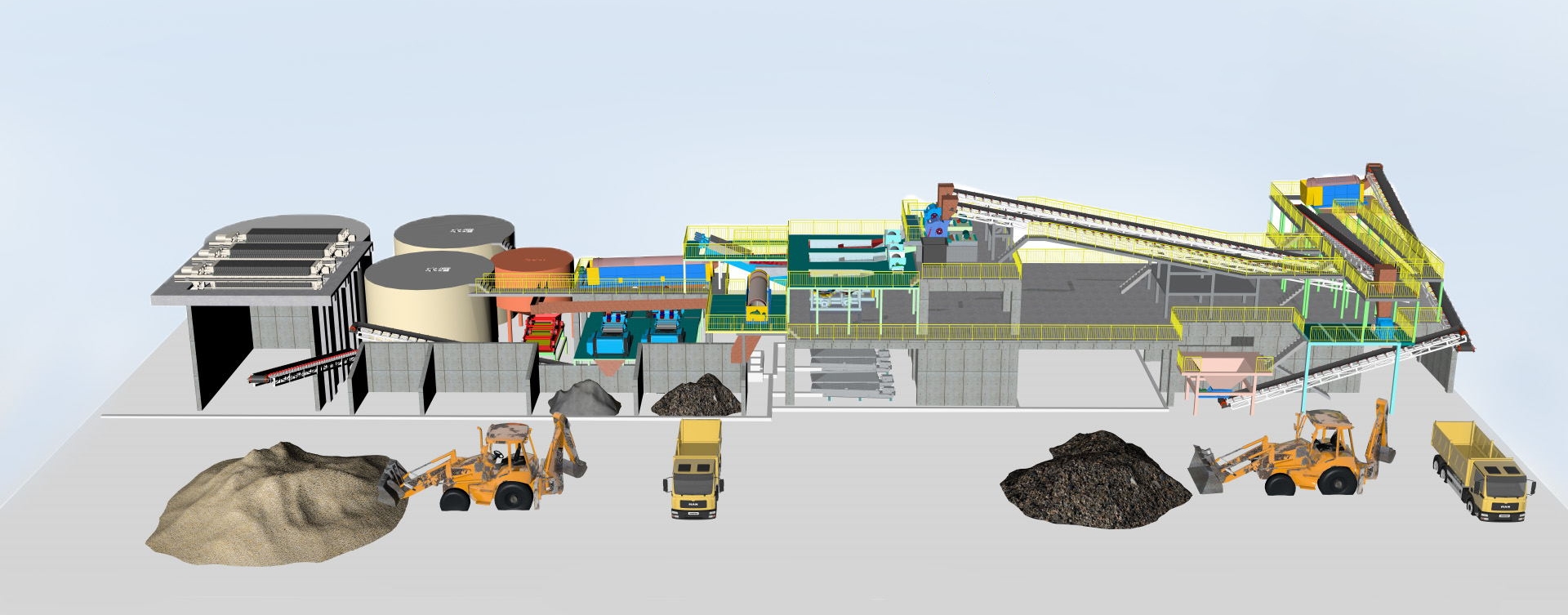

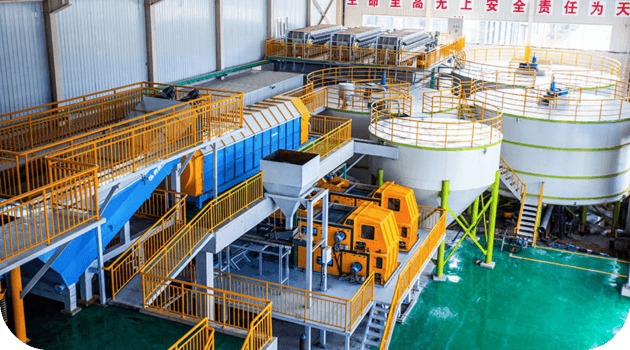

IBA Wet Sorting Production line

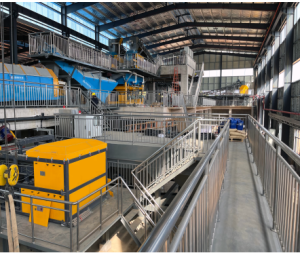

Scrap car sorting line

Ruijie High Efficiency Sorting Machine Technical

Type Model Dimension(L*W*H) (mm) Processing Capacity(t/h)
Eddy Current Separator RJ065AL-R 2800*1764*1140 2~8mm,2t/h
8~30mm,4t/h
30~80mm,6.5t/h
Wet Drum Magnetic Separator CTS-50120L 2058*1040*960 10~20
Up-suction Magnetic Separator SX60100R 2046*1337*1306 32-52
Permanent Magnetic Separator RCYD3F 2261*570*569 30-50
Electromagnetic Overboard Separator RCDD08 2215*1338*974 50-80
Copper Hammer Crusher PC-TT500A 1370*1400*1110 2-3
Stone Hammer Crusher PC-DS800B 1450*1780*1170 30-50
Iron Hammer Crusher PC-DT800ZB 1580*1770*1270 3-5
Jig Concentrator JTY42 4030*1980*2650 20~50
Dewatering Screen TSS21842 4600*2400*2476 30-60
Trommel Screen GTC1360 7687*1900*1710 25-60
Reciprocating Feeder K-800B 3175*1415*580 50-100
Screw Conveyor LS3000 3755*1200*1170 30-50
Spiral Sand Washing Machine LXS-915 7780*2800*2310 20-80

Get Free Quote of Ruijie High Efficiency Sorting Machine

Ruijie six series core sorting equipment, precision separation technology, eco-friendly screening, multi-industry solutions, maximize material recovery, scale with your needs. Send us inquiry now.

Products Categories
Get A Free Quote
Contact Form Demo (#3)

Ruijie High Efficiency Sorting Machine Application

Ruijie six series core slag equipment can be comprehensive utilize for:

Recycling of Industrial Solid Waste

The separating equipment is utilized in recycling industrial byproducts such as
Coal ash: Separates unburned carbon for reuse in energy generation.
Incineration bottom ash: recover the valuable materials like metals, sand.
Electronics waste (e-waste): Recovers precious metals (e.g., gold, silver) from circuit boards.
Automotive shredder residue (ASR): Extracts non-ferrous metals for smelting.

Sorting Machines For Recycling of Industrial Solid Waste

Mining and Mineral Processing
The sorting machines are deployed in mining operations to process tailings and extract valuable metals (e.g., iron, copper) from low-grade ores

Metallurgical Industry (Blast Furnace Slag Recycling)
Ruijie’s screen equipment are critical in recycling blast furnace slag, a byproduct of iron and steel production. The equipment separates metallic components (e.g., iron particles) from slag.

Sorting Machines Used For Mineral Processing and Metallurgical Industry

Effect of Ruijie Six Core Sorting Machines for A Wet Sorting Production Line



Ruijie slag sorting machines has an excellent effect on industrial solid waste recycling due to its innovative technology and high-efficiency sorting capabilities. The screen machines can equip for the Incineration bottom ash (IBA) wet sorting production line to process the separation and recycle, and highly praised by customers.

Based on our hundreds of customers’ feedback, data inspect and analysis, the production line we design can achieve a high recovery rate of 98%. The recovery rate composition: 2.27% bulk iron scraps, 3.2% iron powder, 0.352% copper, 0.288% aluminum, 70.357% light weight aggregate, 0.08% light floating residues, totally 98%). Because of the reasonable and professional utilization, the wet sorting solution greatly solve the pollution and cost problem during processing progress.

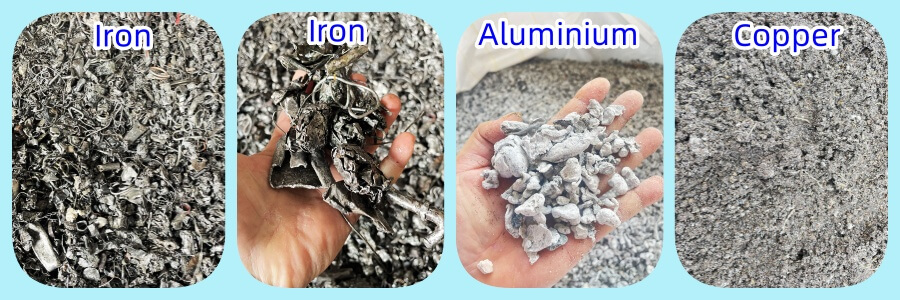

Various of metal recycled from incineration bottom ash by sorting machines

Ruijie wet sorting production line redefines industrial solid waste value through a “precision sorting-resource regeneration-low carbon operation” trinity model. The 98% total recovery rate signifies not only economic gains but also China’s leap toward green intelligent manufacturing.



PURCHASE SORTING EQUIPMENT HERE

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment;Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.

Related Products

Related News

Dongguan Incineration Bottom Ash (IBA) Sorting Plant In Guangdong Province   The Dongguan Incineration Bottom Ash (IBA) sorting project is […]

Inspiring Liuyang IBA Wet Sorting Project Successfully Launched and Operational The Incinerator Bottom Ash(IBA) wet sorting project plant of our […]

Hunan Loudi City IBA Sorting Plant Project Our customer’s project is located in Loudi City, Hunan Province, with a daily […]

HeBei Xingtang County Incineration Bottom Ash (IBA) Sorting Project   Our sorting plant project is located in Xingtang County, Hebei Province, and the […]

HeBei HuaiLai County IBA Sorting Plant Project Our client’s project —HeBei HuaiLai County IBA Sorting Plant Project is located in […]

Jingdezhen Incineration Bottom Ash (IBA) Sorting Project in Jiangxi Province   The Incineration Bottom Ash(IBA) sorting project in Jingdezhen City, Jiangxi […]

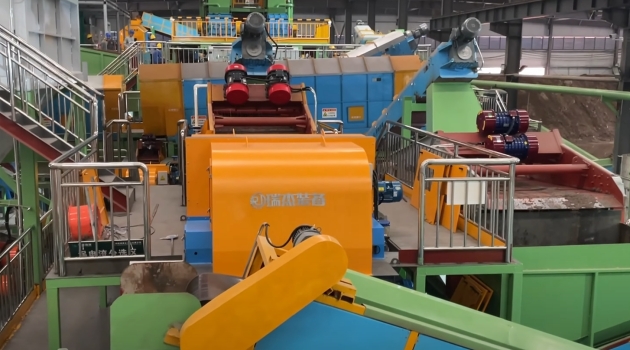

Guangxi LuChuan Incineration Bottom Ash (IBA) Sortng Plant  This project of our client is located in Luchuan County, Guangxi. The incineration bottom […]
