Double Layer Eddy Current Non Ferrous Separator is mainly used for non-ferrous metal sorting in industrial and domestic waste.

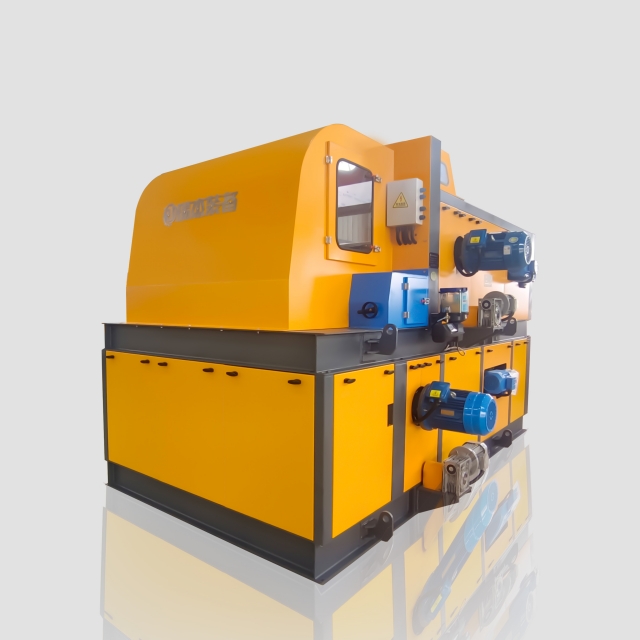

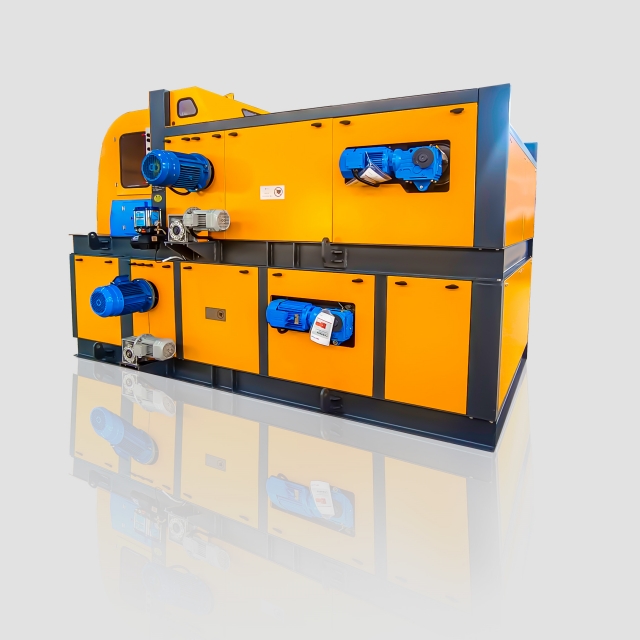

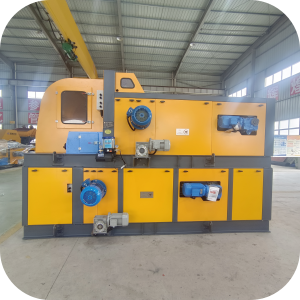

Double Layer Eddy Current Non Ferrous Separator Machine.The number of layers is 2, the color is yellow, and there is a visualization window.

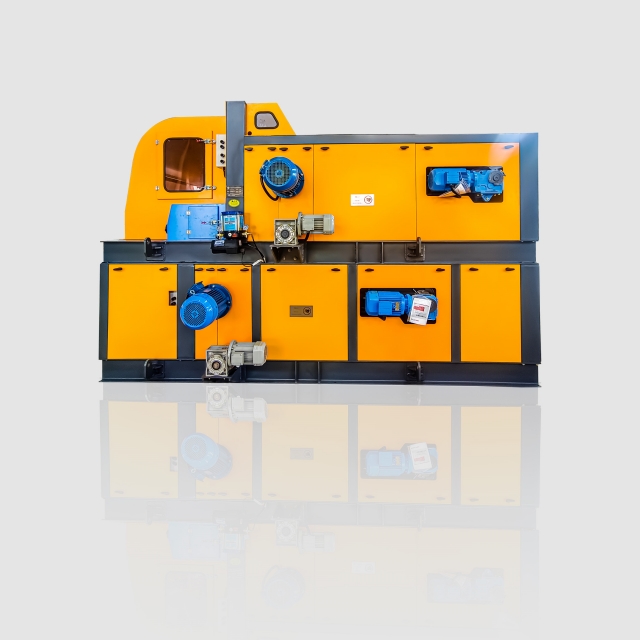

Double Layer Eddy Current Non Ferrous Separator RJ100AL-R2-China Manufacturer

Double Layer Eddy Current Non Ferrous Separator For Non-ferrous Metal Sorting

Double Layer Eddy Current Non Ferrous Separator is utilized in non-ferrous metal separation of industrial and domestic waste.

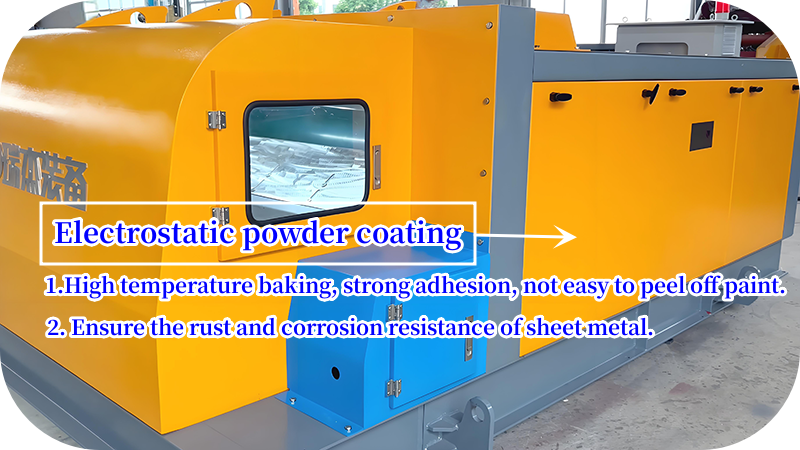

1. The fuselage is wrapper in organic ceramic paint, which offer better adhesion and higher corrosion resistance.

2. The centralized junction box enables unified management of all wiring harnesses of the machine, with higher safety performance.

3. Over-temperature alarm (equipped with bearing temperature monitoring and over-temperature alarm functions)

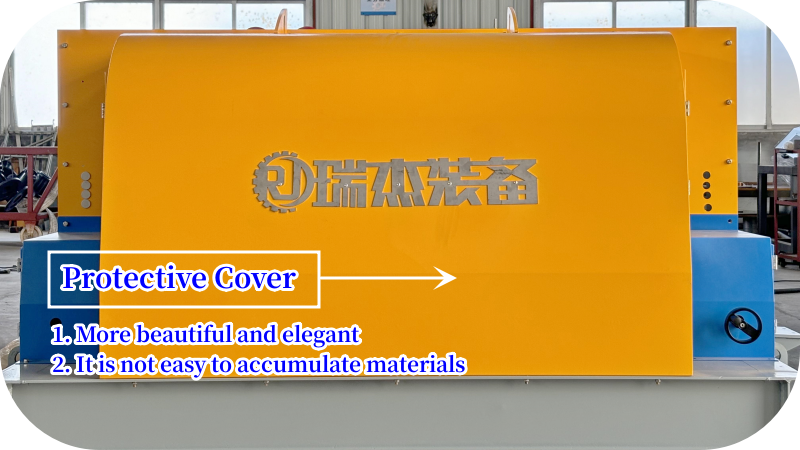

4. The unique protective cover design allows for easy to disassemblly and later maintainance.

Get A Free Quote

Double Layer Eddy Current Non Ferrous Separator Description

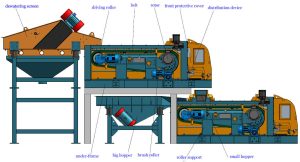

Double Layer Eddy Current Non Ferrous Separator adopts an eccentric magnetic roller design with a large-angle magnetic wrapp. It is equipped with vibrating feeder and baffle adjustment device, and the integrated design of the whole machine is compact and rational.

Double layer Eddy Current Non Ferrous separator Working Principle

Double layer eddy current non ferrous separator operates based on Faraday’s Law of Electromagnetic Induction. When a conductive material passes through a region of a changing magnetic field, the varying magnetic field induces a closed-loop of current–known as an eddy current–within the material.

Conversely, these eddy currents generate a secondary magnetic field within the material, which interacts with the original magnetic field, which causes the object to be subjected to force. In eddy current separators, this principle is utilized to separate non-ferrous metals (e.g., aluminum, copper) from other non-conductive substances.

High Efficiency Eddy Current Non Ferrous Separator Parameter

Model	*Dimensions (LWH) (mm)*	Effective Belt Width (mm）	Power（kw）	Weight（kg）	Feeder Discharge Time(s)	Processing Capacity (t/h)
RJ100AL-2	520926292664	1000	19.9	6416	20~23	3.5-10

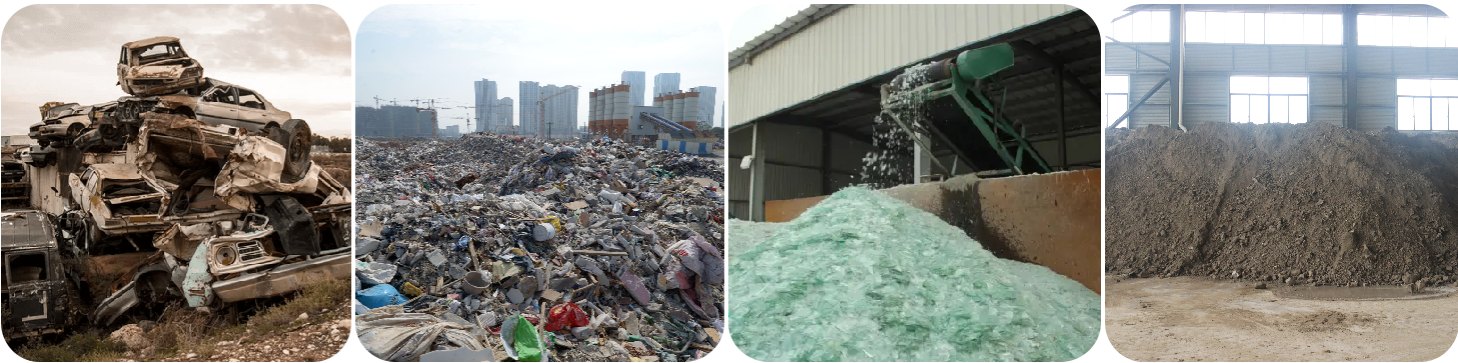

Industrial Cost-effective Eddy Current Separation Equipment Applications

Eddy current separation equipment has a very wide range of application prospects in the fields of electronic waste, domestic waste sorting, automobile dismantling, power plant combustion materials treatment, industrial slag recycling and so on.
1.Urban and rural solid waste treatment: Afte crushing large quantities of beverage bottles and cans, the non ferrous metal separator can effectively separate non-ferrous metals.

2.Electronic waste recycling: When processing electronic waste such as mobile phones and home appliances,Non Ferrous Metal Separator can recover non-ferrous metals.

3.Purification of doors and windows, aluminum-plastic pipes: Eddy current separators perform well in purifying non-ferrous metals such as aluminum.

4.Separation of non-ferrous metals in plastics and glass: The scrap metal separator machines are also suitable for separating non-ferrous metals such as aluminum covers and aluminum boxes from plastics and glass, Scrap Metal Separator Machine are also suitable.

5.Automobile scrap recycling production line: In these occasions, the eddy current sorter can effectively recover various non-ferrous metals such as copper and aluminum.

6.Recycling of waste electrical appliances: The eddy current sorting machine can process the dismantled circuit boards, PCB circuit board scraps, etc., to recover non-ferrous metals.

ASR Construction Waste Waste glass sorting IBA

Get Free Quote of Double Layer Eddy Current Non Ferrous Separator

RUIJIE is one of the leading eddy current separator manufacturers in Asia, and we are able to customize double-layer machines and recycling production lines for you to meet different needs. With more than 15 years of industry expertise, we are committed to delivering tailor-made solutions in a timely manner.

Get A Free Quote Now

Products Categories

Magnetic Separation Machine

Eddy Current Separator

Wet Drum Magnetic Separators

Up-suction Magnetic Drum Separators

Electromagnetic Overband Separator

High Intensity Permanent Magnetic Separator

Gravity Sorting Machine

Jig Concentrator

Crushing Machine

Iron Hammer Crushing Machine

Hammer Stone Crusher

Copper Hammer Crushing Machine

Screening Machine

Vibrating Dewatering Screens

Trommel Screen Machine

Conveying Machine

Bucket Wheel Sand Washer

Screw Sand Washing Machine

Screw Conveyor

Reciprocating Plate Feeder

Gold Mining Equipment

Get A Free Quote

Eddy Current Non Ferrous Separator For Aluminum and Plastic Blocks Sorting Video

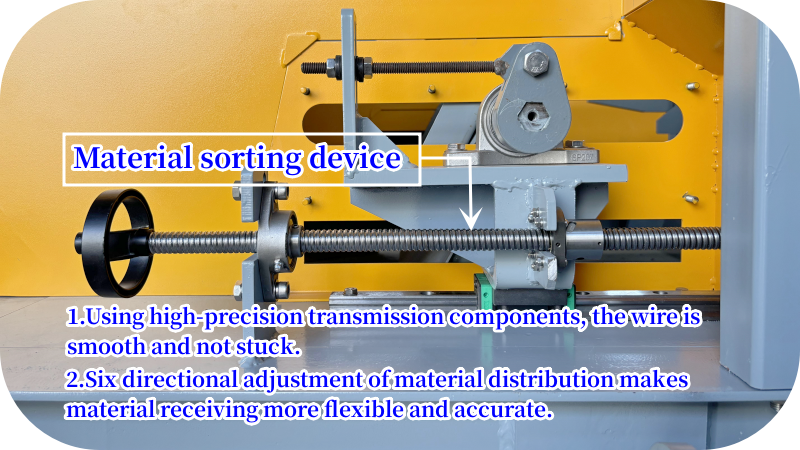

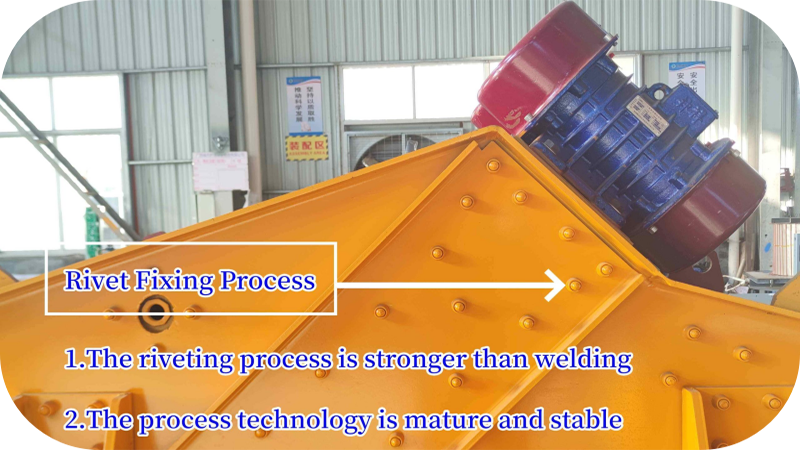

High Recover Accuracy Eddy Current Non Ferrous Separator Detail Display

More Information About the Ruijie Double Layer Eddy Current For Ferrous Separation

Double Layer Eddy Current Non Ferrous Separator Installation Site

What Is The Difference Between Single-layer Separator and Double Layer Eddy Current Non Ferrous Separator ？

The main differences between a dual-layer non-ferrous metal separator and a single-layer one are:

1.Separation Efficiency: The dual-layer design featrures two-stage separation, which enhance efficiency and precision while reducing metal loss.

2.Processing Capacity: Dual-layer machines can handle larger volume of material simultaneously, making it ideal for high-volume operations.

3.Space Utilization: The dual-layer design utilizes vertical space, enabling more efficient separation within limited floor space.

4.Flexibility: Dual-layer machines allow for independent adjustment of separation parameters in each layer, thus offering greater adaptability to different materials.

4.Cost-Effectiveness: Dual-layer eddy sorters deliver higher throughput and precision per unit investment, offering better long-term value than single-layer ones.

FAQs

1. How to choose the appropriate product model?

In order to recommend the most suitable model, please provide us with information about the material, including its composition, size, processing capacity (per hour), and expected separation results.

2. How long is the production cycle of the equipment?

Different products have different production cycles, about 15-40 days.

3. How long is the warranty period of the equipment?

The warranty period is 1 year, calculated from the date the equipment arrives at the buyer’s site; Consumables, vulnerable parts, and damage caused by improper operation are not covered by the warranty.

4. Which payment terms are available to us?

We accept T/T terms or L/C terms. A 50% down payment is reguired in advance, and the 50% balance shall be setled before shipment；Under L/C terms, a 100% irrevocable L/C without ‘soft clauses’ can be accepted.

5. Does it support test machine with incoming materials?

Yes, of course. You can bring the materials to the factory for testing in person, or you can mail the materials. We will test the materials according to your needs and provide you with the data information and on-site video after testing.

6. Does it support inspection before shipment?

Yes, it is possible. You can come to the factory for inspection or have a third-party inspection.
