Double Chamber Jig Concentrator JTY82-Supplier

Double Chamber Jig Concentrator is widely used in the separation of metals such as tin, tungsten, lead, zinc, antimony, manganese, diamond, and iron ore.

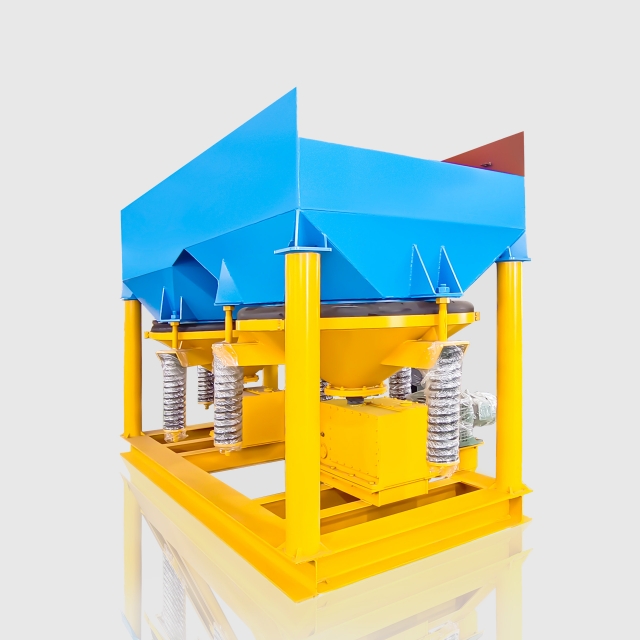

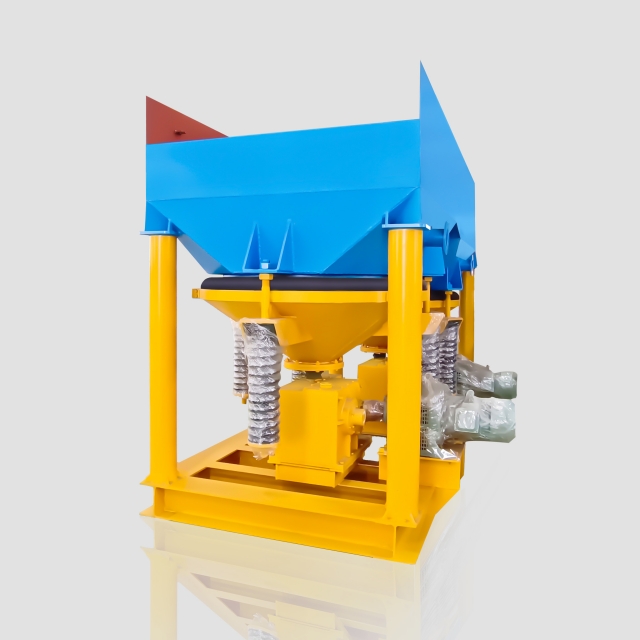

8 CBM Jig Machine Separator With Double Chamber JTY82

Double Chamber Jig Concentrator for Mineral Separation

The Double Chamber Jig Concentrator finds extensive application in separating various metals including tin, tungsten, lead, zinc, antimony, manganese, as well as diamonds and iron ore.

1.The equipment features a more compact structure with a small footprint, while offering larger processing capacity. It can meet the sorting needs of different media and increase processing capacity by over 20%.

2.The Driven by a cam mechanism, it generates a zigzag waveform ripple curve, which ensures uniform upward jigging water flow and rapid downward water flow. This effectively improves the recovery rate of fine-grained valuable minerals and delivers excellent beneficiation results for fine-grained materials.

Get A Free Quote

Double Chamber Jig Concentrator for Mineral Separation Description

The Double Chamber Jig Concentrator is a key piece of equipment in gravity beneficiation, boasting large processing capacity, a wide applicable particle size range, high recovery rates, and excellent performance..

The sawtooth-wave Double Chamber Jig Concentrator is an energy-efficient gravity separation device developed and improved from traditional jig machines, based on the theoretical stratification law of the jig beds;

Its jigging pulsation curve features a sawtooth pattern, resulting in faster upward water flow than downward flow. With short rising time and long falling time, it overcomes the drawbacks of sine-wave pulsation curve jigs—where upward and downward water flows and their acting times are equal. This design enhances bed looseness, mitigates the suction effect, enables full settlement of heavy ore particles in the material, and significantly improves the equipment’s sorting efficiency and recovery rate.

Reliable Double-Chamber Jig Machine Parameter

Model	Jigging Chamber		Diaphragm		Feed Particle Size （mm）	Supply Water Under Screen (m³/t)	Supply Water Pressure Under Screen (Mpa)	Processing Capacity (t/h)	Power (kw)	*Dimensions(LWH)(mm)*	Weight (kg)
Model	Shape	Area(㎡)	Stroke(mm)	Jig Frequency (c/min)	Feed Particle Size （mm）	Supply Water Under Screen (m³/t)	Supply Water Pressure Under Screen (Mpa)	Processing Capacity (t/h)	Power (kw)	*Dimensions(LWH)(mm)*	Weight (kg)
JT2-1	Trapezia	2.25	30M	40~90	0-10	3~6	≥0.1	15~35	5.5	223017402600	2100
JT4-2	Trapezia	4.5	30M	50~90	0-10			30~50	5.5×2	403019802650	4200
JT6-3	Trapezia	6.75	30M	50~90	0-10			40~70	18.5	556018852650	5916
JT8-2	Trapezia	8	30M	50~90	0-25			60~90	11×2	520024003250	8365
JT10-2	Trapezia	10	30M	50~90	0-25			60~100	11×2	569322803240	11000

Double Chamber Jig Separator Applications

Double Chamber Jig Separators are widely applied in industries such as mining, incineration bottom ash (IBA) processing, and building materials manufacturing, playing a vital role in processes including crushing, mixing, drying, and screening.

Various Mine Sorting Industries:Jigging beneficiation is extensively used for separating tungsten ore, tin ore, and certain rare metal ores. Additionally, it is employed in sorting iron ore, manganese ore, and non-metallic ores.

Waste Slag Sorting Industry:Jig machines can recover metal particles from solid waste generated during incineration. We offer free design services for customized sorting lines, helping transform waste into valuable resources in the incineration bottom ash sorting sector.
